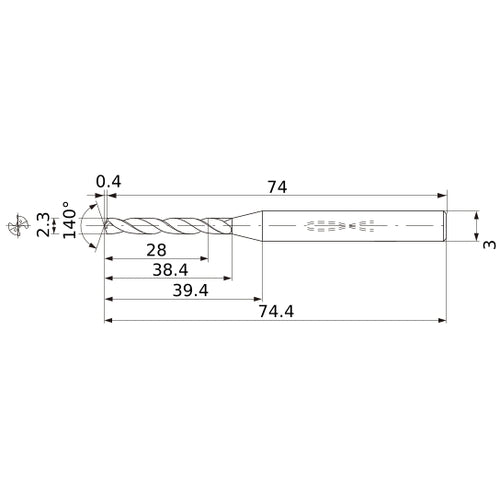

MWS0230XB VP15TF 2.3 mm Dia. × 3 mm Shank × 38.4 mm Flute Length × 74.4 mm OAL, 140°, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: MB03348664
Brand: Mitsubishi Materials USA
Model #: 348664
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 2.3 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 2.3 mm |
| Cutting Edge Material | Carbide |
| Length Group | 12xD |
| Grade | VP15TF |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Series/List # | MWS |
| Head Length (LH) | 39.4 mm |
| Usable Length (LU) | 28 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 38.4 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 74.4 mm |
| Point Length (PL) | 0.4 mm |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 74 mm |
| Feature | For high accuracy and efficient drilling of steels, carbon steels and difficult-to-cut materials. |
