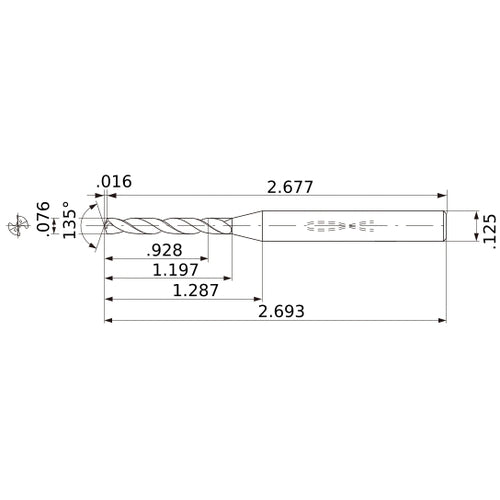

MWS00760XB VP15TF 0.076″ Dia. × 1/8″ Shank × 1.197″ Flute Length × 2.693″ OAL, 135°, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: MB03348411
Brand: Mitsubishi Materials USA
Model #: 348411
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 0.076″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.076″ |
| Cutting Edge Material | Carbide |
| Length Group | 12xD |
| Grade | VP15TF |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Series/List # | MWS_INCH |
| Head Length (LH) | 1.287″ |
| Usable Length (LU) | 0.928″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 1.197″ |
| Point Angle (SIG) | 135 Degrees |
| Overall Length (OAL) | 2.693″ |
| Point Length (PL) | 0.016″ |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 2.677″ |
| Feature | For high accuracy and efficient drilling of steels, carbon steels and difficult-to-cut materials. |
