MAE1230MB CARB DRILL
Item #: MB03243424
Brand: Mitsubishi Materials USA
Model #: 243424

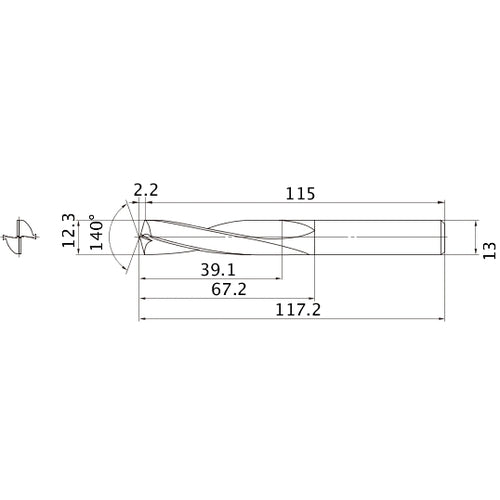

| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 12.3 mm |
| Flute Helix Angle (FHA) | 10 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 12.3 mm |
| Cutting Edge Material | Carbide |
| Length Group | 3xD |
| Grade | HTi10 |
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 13 mm |
| Series/List # | MAE_MAS |
| Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 39.1 mm |
| Point Angle (SIG) | 140 Degrees |
| Length Chip Flute (LCF) | 67.2 mm |
| Point Length (PL) | 2.2 mm |
| Overall Length (OAL) | 117.2 mm |
| Functional Length (LF) | 115 mm |
| Flute Count (NOF) | 2 |
