MS2MRBD0250R030 CARBIDE ENDMILL
Item #: MB03238465
Brand: Mitsubishi Materials USA
Model #: 238465

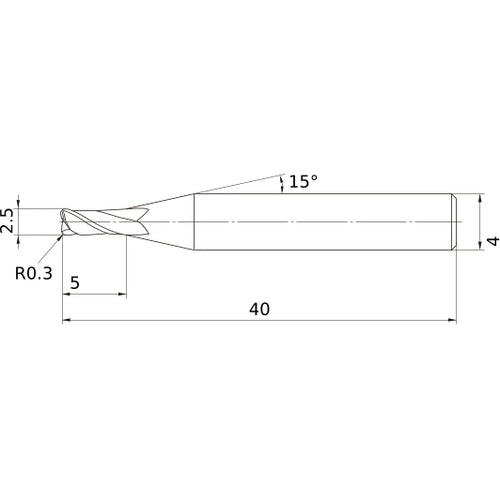

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 2.5 mm |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Corner Radius (RE) | 0.3 mm |
| Depth of Cut Maximum (APMX) | 5 mm |
| Body Half Taper Angle (BHTA) | 15 Degrees |
| Overall Length (OAL) | 40 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 2 |
| Coating | MS |
| Length Group | Medium |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | MS2MRB |
