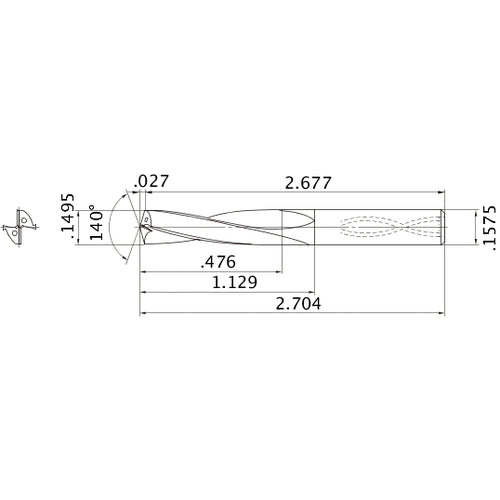

MAS01495MB HTi10 0.1495″ Dia. × 0.1575″ Shank × 1.129″ Flute Length × 2.704″ OAL, 140°, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: MB03214754
Brand: Mitsubishi Materials USA
Model #: 214754
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 0.1495″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.1495″ |
| Grade | HTi10 |
| Length Group | 3xD |
| Measurement Type | Inch |
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials |
| Series/List # | MAS_INCH |
| Connection Diameter Machine Side (DCONMS) | 0.1575″ |
| Usable Length (LU) | 0.476″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 1.129″ |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 2.704″ |
| Point Length (PL) | 0.027″ |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 2.677″ |
| Feature | High hole accuracy.,Pre-hole drilling for rolled tap. |
| Flute Helix Angle (FHA) | 10 Degrees |
