DF2XLBR0050N160
Item #: MB0310577578
Brand: Mitsubishi Materials USA
Model #: 10577578

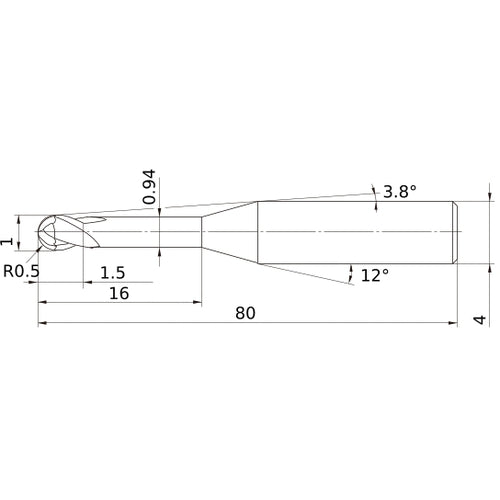

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1 mm |
| Usable Length (LU) | 16 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Corner Radius (RE) | 0.5 mm |
| Depth of Cut Maximum (APMX) | 1.5 mm |
| Neck Diameter (DN) | 0.94 mm |
| Overall Length (OAL) | 80 mm |
| Body Half Taper Angle (BHTA) | 12 Degrees |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | DF2XLB |
