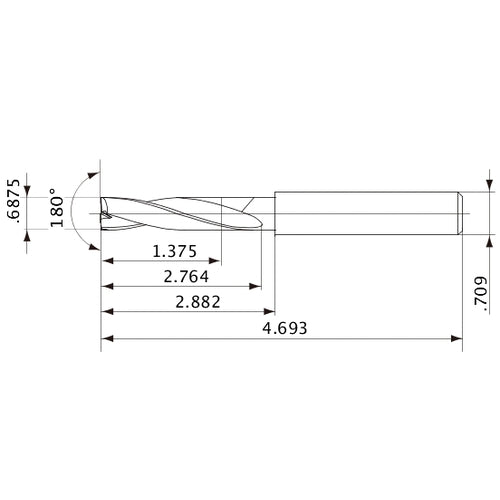

MFE1746X02S180 DP1020 11/16″ Dia. × 0.709″ Shank × 2.764″ Flute Length × 4.693″ OAL, 180°, 2 Flute, External Coolant, Solid Carbide Drill
Item #: MB0310562819
Brand: Mitsubishi Materials USA
Model #: 10562819
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 11/16″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 11/16″ |
| Grade | DP1020 |
| Decimal Equivalent | 0.6875″ |
| Measurement Type | Inch |
| Length Group | 2xD |
| Series/List # | MFE_INCH |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Usable Length (LU) | 1-3/8″ |
| Connection Diameter Machine Side (DCONMS) | 0.709″ |
| Length Chip Flute (LCF) | 2.764″ |
| Head Length (LH) | 2.882″ |
| Overall Length (OAL) | 4.693″ |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Point Angle (SIG) | 180 Degrees |
| Feature | High efficiency drilling in various types of machining. |
| Flute Helix Angle (FHA) | 20 Degrees |
