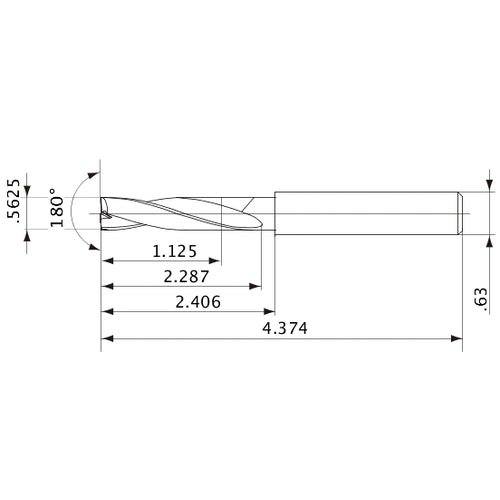

MFE1429X02S160 DP1020 9/16″ Dia. × 0.63″ Shank × 2.287″ Flute Length × 4.374″ OAL, 180°, 2 Flute, External Coolant, Solid Carbide Drill
Item #: MB0310562727
Brand: Mitsubishi Materials USA
Model #: 10562727
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 9/16″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 9/16″ |
| Grade | DP1020 |
| Decimal Equivalent | 0.5625″ |
| Measurement Type | Inch |
| Length Group | 2xD |
| Series/List # | MFE_INCH |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Usable Length (LU) | 1-1/8″ |
| Connection Diameter Machine Side (DCONMS) | 0.63″ |
| Length Chip Flute (LCF) | 2.287″ |
| Head Length (LH) | 2.406″ |
| Overall Length (OAL) | 4.374″ |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Point Angle (SIG) | 180 Degrees |
| Feature | High efficiency drilling in various types of machining. |
| Flute Helix Angle (FHA) | 20 Degrees |
