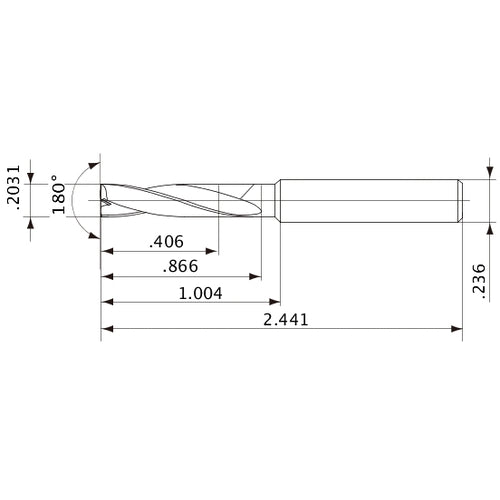

MFE0516X02S060 DP1020 0.2031″ Dia. × 0.236″ Shank × 0.866″ Flute Length × 2.441″ OAL, 180°, 2 Flute, External Coolant, Solid Carbide Drill
Item #: MB0310562512
Brand: Mitsubishi Materials USA
Model #: 10562512
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 0.2031″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.2031″ |
| Grade | DP1020 |
| Length Group | 2xD |
| Measurement Type | Inch |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Series/List # | MFE_INCH |
| Connection Diameter Machine Side (DCONMS) | 0.236″ |
| Usable Length (LU) | 0.406″ |
| Head Length (LH) | 1.004″ |
| Length Chip Flute (LCF) | 0.866″ |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2.441″ |
| Point Angle (SIG) | 180 Degrees |
| Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 20 Degrees |
| Feature | High efficiency drilling in various types of machining. |
