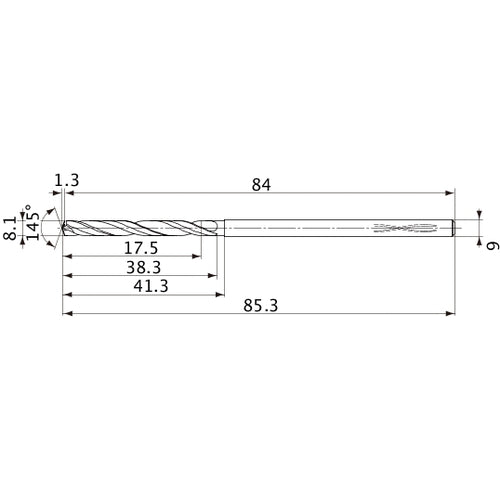

MVS0810X02S090PL DP1020 8.1 mm Dia. × 9 mm Shank × 38.3 mm Flute Length × 85.3 mm OAL, 145°, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: MB0310555934
Brand: Mitsubishi Materials USA
Model #: 10555934
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 8.1 mm |
| Flute Helix Angle (FHA) | 27 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8.1 mm |
| Cutting Edge Material | Carbide |
| Length Group | 2xD |
| Grade | DP1020 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 9 mm |
| Series/List # | PILOT-MVS |
| Head Length (LH) | 41.3 mm |
| Usable Length (LU) | 17.5 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 38.3 mm |
| Point Angle (SIG) | 145 Degrees |
| Overall Length (OAL) | 85.3 mm |
| Point Length (PL) | 1.3 mm |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 84 mm |
| Feature | Straight cutting edge profile improves both chip evacuation and cutting edge strength.,Double margin offers excellent straightness and high precision. |
