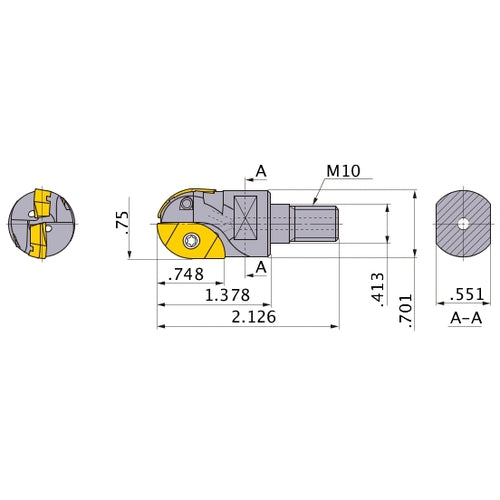

SRM212AM10S35 INDEXABLE END MILL
Item #: MB0310533192
Brand: Mitsubishi Materials USA
Model #: 10533192
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 3/4″ |
| Flute Count (NOF) | 2 |
| Cutting Diameter (DC) | 3/4″ |
| Body Diameter (BD) | 0.701″ |
| Cutting Item Count (CICT) | 2 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.748″ |
| Series/List # | SRM2_INCH |
| Overall Length (OAL) | 2.126″ |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.413″ |
| Connection Retention Knob Thread Size (CRKS) | M10 |
| Functional Length (LF) | 1.378″ |
