APX3000UR164AM12A35 INDX END MILL
Item #: MB0310533116
Brand: Mitsubishi Materials USA
Model #: 10533116

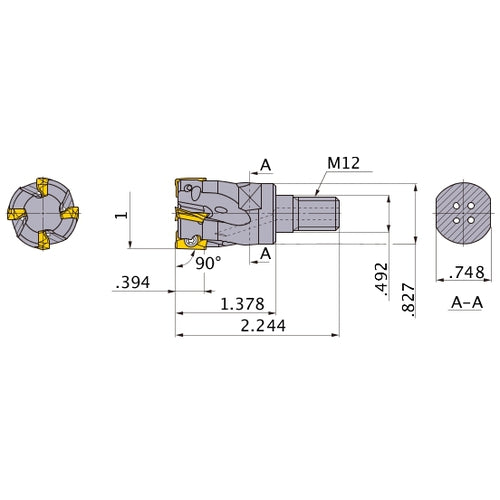

| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 1″ |
| Flute Count (NOF) | 4 |
| Cutting Diameter (DC) | 1″ |
| Body Diameter (BD) | 0.827″ |
| Cutting Item Count (CICT) | 4 |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.394″ |
| Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 2.244″ |
| Series/List # | APX3000_INCH |
| Connection Diameter Machine Side (DCONMS) | 0.492″ |
| Measurement Type | Inch |
| Functional Length (LF) | 1.378″ |
| Connection Retention Knob Thread Size (CRKS) | M12 |
