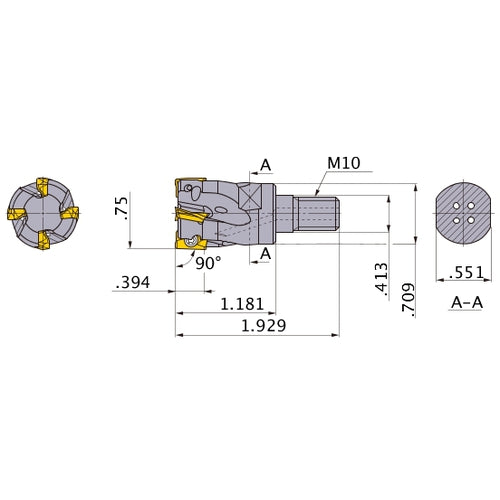

APX3000UR123AM10A30 INDX END MILL
Item #: MB0310533079
Brand: Mitsubishi Materials USA
Model #: 10533079
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 3/4″ |
| Flute Count (NOF) | 3 |
| Cutting Diameter (DC) | 3/4″ |
| Body Diameter (BD) | 0.709″ |
| Cutting Item Count (CICT) | 3 |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.394″ |
| Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 1.929″ |
| Series/List # | APX3000_INCH |
| Connection Diameter Machine Side (DCONMS) | 0.413″ |
| Measurement Type | Inch |
| Functional Length (LF) | 1.181″ |
| Connection Retention Knob Thread Size (CRKS) | M10 |
