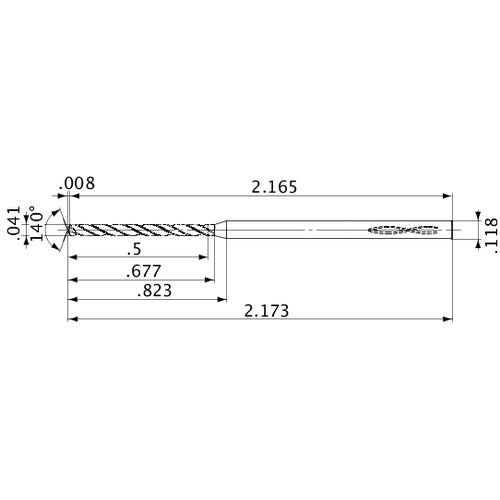

MVS0104X12S030 DP1020 0.041″ Dia. × 0.118″ Shank × 0.677″ Flute Length × 2.173″ OAL, 140°, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: MB0310531969
Brand: Mitsubishi Materials USA
Model #: 10531969
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 0.041″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.041″ |
| Cutting Edge Material | Carbide |
| Length Group | 12xD |
| Grade | DP1020 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.118″ |
| Series/List # | MICRO-MVS_INCH |
| Head Length (LH) | 0.823″ |
| Usable Length (LU) | 1/2″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 0.677″ |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 2.173″ |
| Point Length (PL) | 0.008″ |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 2.165″ |
| Feature | Straight cutting edge profile improves both chip evacuation and cutting edge strength.,Double margin offers excellent straightness and high precision.,MVS-X02- = Drill for guide hole Dimensions = 0+0.00055, Hole depth=2DC |
