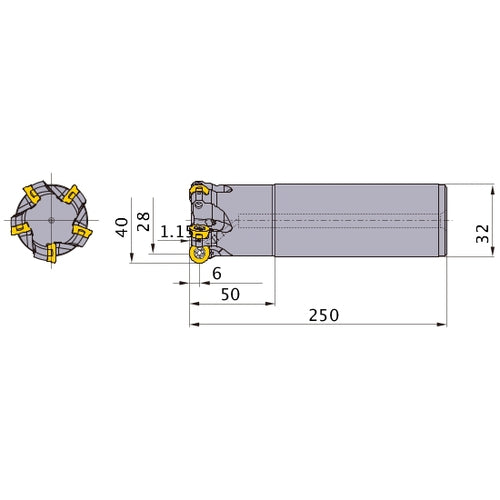

ARP6PR4003SA32L INDX EM
Item #: MB0310527122
Brand: Mitsubishi Materials USA
Model #: 10527122
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 28 mm |
| Head Length (LH) | 50 mm |
| Cutting Diameter (DC) | 28 mm |
| Functional Length (LF) | 250 mm |
| Cutting Diameter Maximum (DCX) | 40 mm |
| Flute Count (NOF) | 3 |
| Cutting Item Count (CICT) | 3 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 6 mm |
| Series/List # | ARP |
| Ramping Angle Maximum (RMPX) | 2.7 Degrees |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
