IMX16CH6V160A45 EP7020 CARB EM
Item #: MB0310520802
Brand: Mitsubishi Materials USA
Model #: 10520802

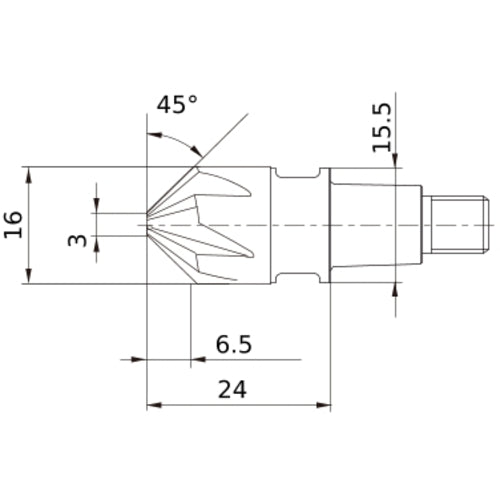

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 16 mm |
| Grade | EP7020 |
| Applicable Material | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Flute Count (NOF) | 6 |
| Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 6.5 mm |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 15.5 mm |
| Series/List # | iMX_CH6V |
| Functional Length (LF) | 24 mm |
| End Shape | Chamfer |
