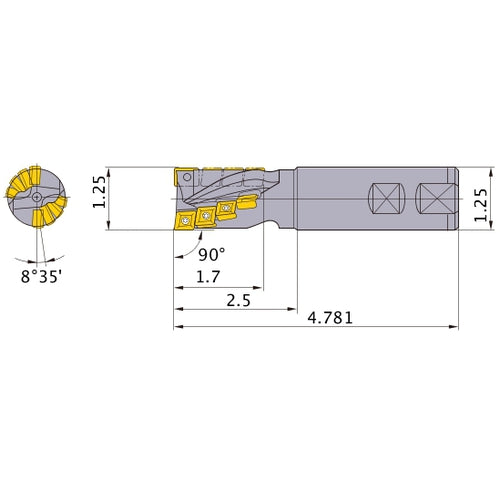

LER2008W20 INDEXABLE ENDMILL
Item #: MB03102647
Brand: Mitsubishi Materials USA
Model #: 102647
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 1-1/4″ |
| Functional Length (LF) | 4.781″ |
| Cutting Diameter (DC) | 1-1/4″ |
| Flute Count (NOF) | 2 |
| Cutting Item Count (CICT) | 8 |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 1.7″ |
| Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 4.781″ |
| Series/List # | LER_INCH |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
| Measurement Type | Inch |
| Head Length (LH) | 2-1/2″ |
