CFSPR203W20 INDEXABLE ENDMILL
Item #: MB03100667
Brand: Mitsubishi Materials USA
Model #: 100667

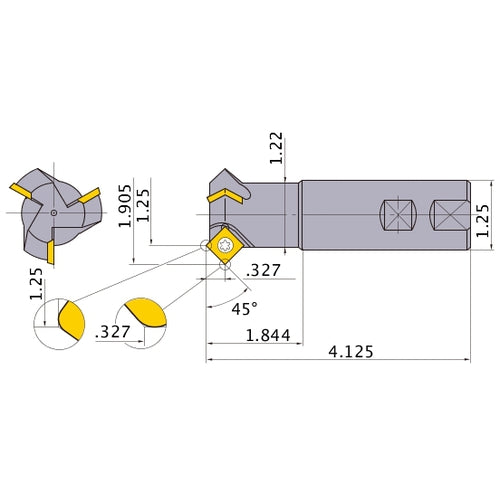

| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 1-1/4″ |
| Functional Length (LF) | 4-1/8″ |
| Cutting Diameter (DC) | 1-1/4″ |
| Body Diameter (BD) | 1.22″ |
| Cutting Diameter Maximum (DCX) | 1.905″ |
| Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Cutting Item Count (CICT) | 3 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.327″ |
| Series/List # | CFSP_INCH |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
| Measurement Type | Inch |
| Head Length (LH) | 1.844″ |
