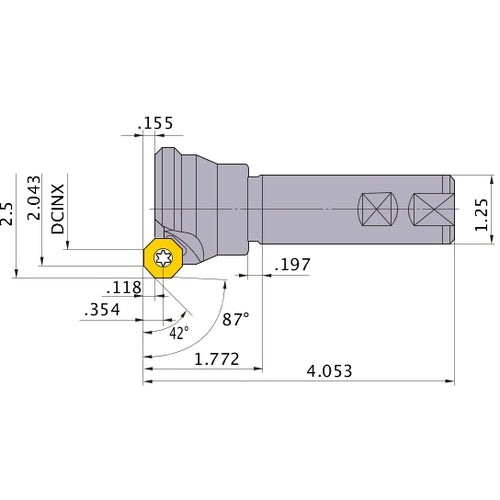

BOER403W20 INDEXABLE ENDMILL
Item #: MB03100226
Brand: Mitsubishi Materials USA
Model #: 100226
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 2.043″ |
| Head Length (LH) | 1.772″ |
| Cutting Diameter (DC) | 2.043″ |
| Functional Length (LF) | 4.053″ |
| Cutting Diameter Maximum (DCX) | 2-1/2″ |
| Tool Cutting Edge Angle (KAPR) | 42 Degrees |
| Cutting Item Count (CICT) | 3 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.354″ |
| Series/List # | BOE_INCH |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
| Measurement Type | Inch |
