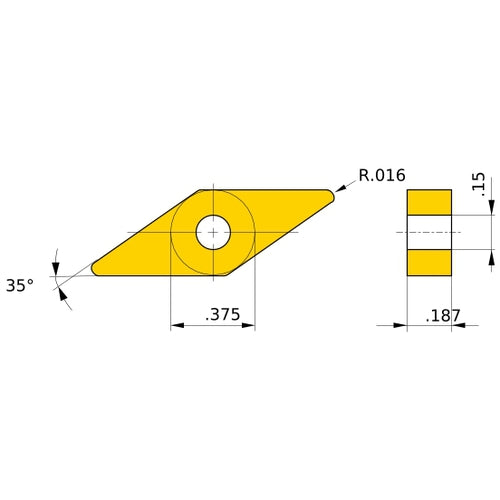

VNMG 331 SA MC6025, 0.4 mm Corner Radius, 4.76 mm Thick, 9.525 mm Inscribed Circle, Turning Indexable Insert
Item #: MB02843577
Brand: Mitsubishi Materials USA
Model #: 843577
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Grade | MC6025 |
| Application | Light Cutting |
| Tool Type | Turning Insert |
| Insert Style | VNMG |
| Fixing Hole Diameter (D1) | 3.81 mm |
| Corner Radius (RE) | 0.4 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 331 |
| Chip Breaker Type | SA |
| Insert Thickness (S) | 4.76 mm |
| Quantity | 10 |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Measurement Type | Metric |
| Insert Included Angle (EPSR) | 35 Degrees |
| Shape | 35° Rhombic |
| Cutting Edge Material | Carbide |
| Series/List # | MC6025 |
