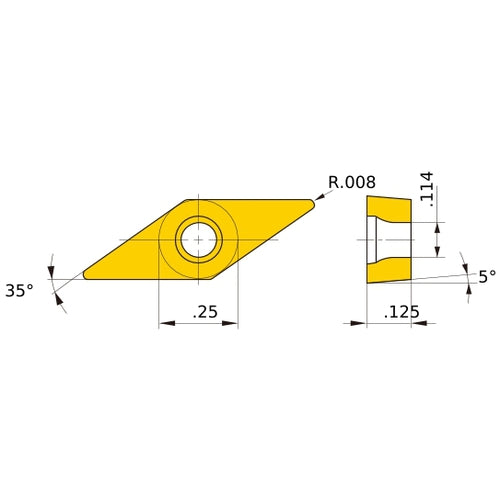

VBMT 220.5 FP MC6015, 0.2 mm Corner Radius, 3.18 mm Thick, 6.35 mm Inscribed Circle, Turning Indexable Insert
Item #: MB02842865
Brand: Mitsubishi Materials USA
Model #: 842865
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Tool Type | Turning Insert |
| Application | Finish Cutting |
| Fixing Hole Diameter (D1) | 2.9 mm |
| Insert Style | VBMT |
| Clearance Angle Major (AN) | 5 Degrees |
| Corner Radius (RE) | 0.2 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 220.5 |
| Chip Breaker Type | FP |
| Insert Thickness (S) | 3.18 mm |
| Quantity | 10 |
| Inscribed Circle Diameter (IC) | 6.35 mm |
| Measurement Type | Metric |
| Insert Included Angle (EPSR) | 35 Degrees |
| Shape | 35° Rhombic |
| Cutting Edge Material | Carbide |
| Series/List # | MC6015 |
| Grade | MC6015 |
