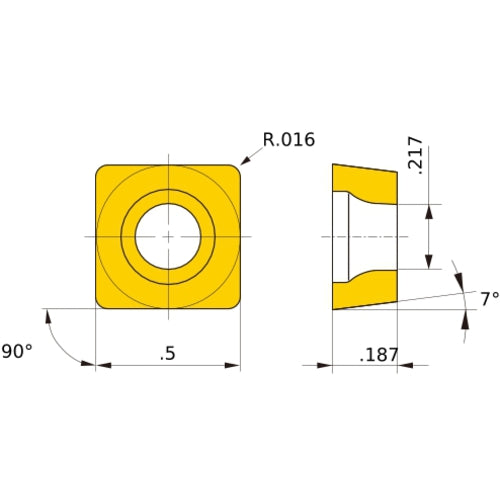

SCMT 431 MP MP3025, 0.4 mm Corner Radius, 4.76 mm Thick, 12.7 mm Inscribed Circle, Turning Indexable Insert
Item #: MB02693177
Brand: Mitsubishi Materials USA
Model #: 693177
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Tool Type | Turning Insert |
| Application | Medium Cutting |
| Fixing Hole Diameter (D1) | 5.5 mm |
| Insert Style | SCMT |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.4 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 431 |
| Chip Breaker Type | MP |
| Insert Thickness (S) | 4.76 mm |
| Quantity | 10 |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Measurement Type | Metric |
| Insert Included Angle (EPSR) | 90 Degrees |
| Shape | Square |
| Cutting Edge Material | Cermet |
| Series/List # | MP3025 |
| Grade | MP3025 |
