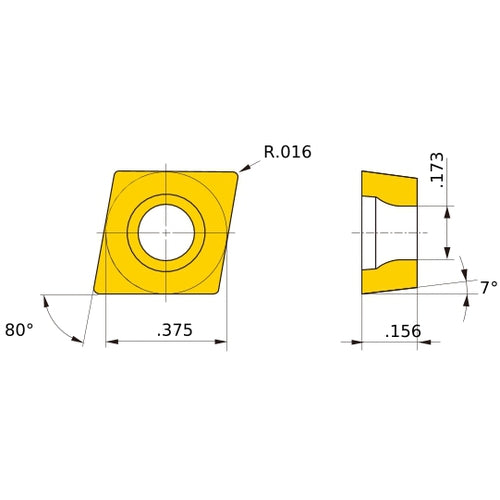

CCMT 32.51 LP NX2525, 0.4 mm Corner Radius, 3.97 mm Thick, 9.525 mm Inscribed Circle, Turning Indexable Insert
Item #: MB02692502
Brand: Mitsubishi Materials USA
Model #: 692502
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Tool Type | Turning Insert |
| Application | Light Cutting |
| Fixing Hole Diameter (D1) | 4.4 mm |
| Insert Style | CCMT |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.4 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 32.51 |
| Chip Breaker Type | LP |
| Insert Thickness (S) | 3.97 mm |
| Quantity | 10 |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Measurement Type | Metric |
| Insert Included Angle (EPSR) | 80 Degrees |
| Shape | 80° Rhombic |
| Cutting Edge Material | Cermet |
| Series/List # | NX2525 |
| Grade | NX2525 |
