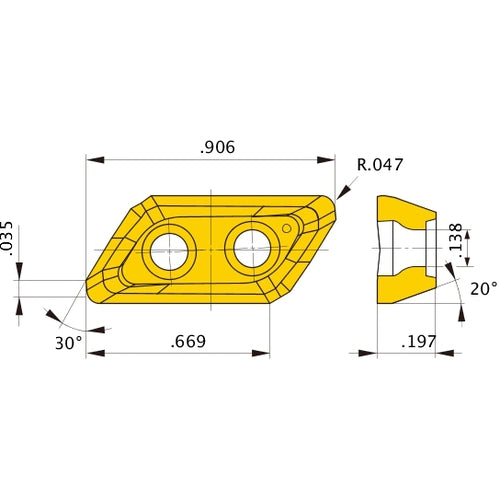

XDGX175012PDFR-GM TF15 INSERT
Item #: MB02679316
Brand: Mitsubishi Materials USA
Model #: 679316
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium |
| Clearance Angle Major (AN) | 20 Degrees |
| Cutting Edge Length (L) | 23 mm |
| Chip Breaker Type | GM |
| Insert Length (INSL) | 17.5 mm |
| Series/List # | TF15 |
| Corner Radius (RE) | 1.2 mm |
| Hole Diameter | 3.5 mm |
| Insert Thickness (S) | 5 mm |
| Cutting Edge Material | Carbide |
| Wiper Edge Length (BS) | 0.9 mm |
| Tool Type | rotating_inserts |
| Grade | TF15 |
| Cutting Edge Effective Length (LE) | 17 mm |
| Insert Style | XDGX |
| Measurement Type | Metric |
