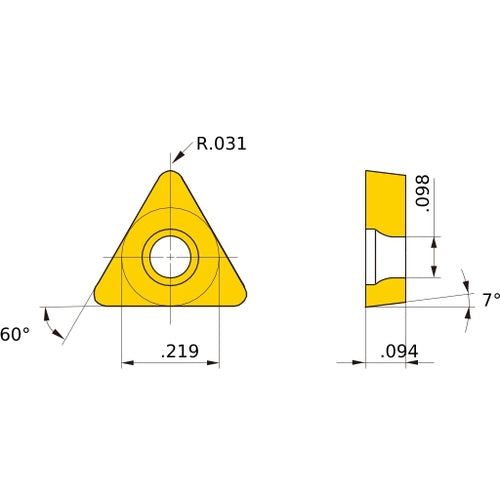

TCMT1.81.52MM MC7025 INSERT
Item #: MB02660404
Brand: Mitsubishi Materials USA
Model #: 660404
| Product Specifications | |
|---|---|
| Applicable Material | Stainless Steel |
| Tool Type | Turning Insert |
| Application | Medium Cutting |
| Fixing Hole Diameter (D1) | 2.5 mm |
| Insert Style | TCMT |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.8 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 1.81.52 |
| Chip Breaker Type | MM |
| Insert Thickness (S) | 2.38 mm |
| Quantity | 10 |
| Inscribed Circle Diameter (IC) | 5.56 mm |
| Measurement Type | Metric |
| Insert Included Angle (EPSR) | 60 Degrees |
| Shape | Triangle |
| Cutting Edge Material | Carbide |
| Series/List # | MC7025 |
| Grade | MC7025 |
