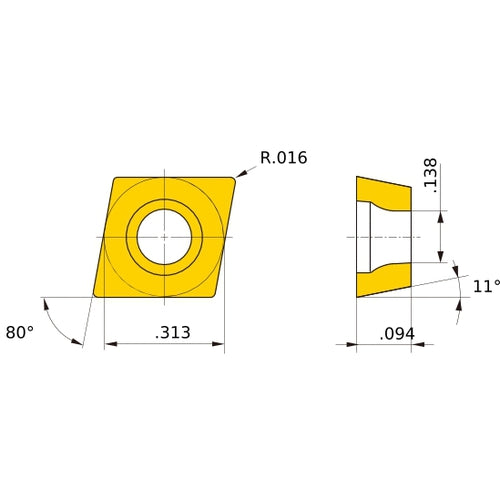

CPMH 2.51.51 MV MP3025, 0.4 mm Corner Radius, 2.38 mm Thick, 7.94 mm Inscribed Circle, Turning Indexable Insert
Item #: MB02603303
Brand: Mitsubishi Materials USA
Model #: 603303
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Tool Type | Turning Insert |
| Application | Medium Cutting |
| Fixing Hole Diameter (D1) | 3.5 mm |
| Insert Style | CPMH |
| Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.4 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 2.51.51 |
| Chip Breaker Type | MV |
| Insert Thickness (S) | 2.38 mm |
| Quantity | 10 |
| Inscribed Circle Diameter (IC) | 7.94 mm |
| Measurement Type | Metric |
| Insert Included Angle (EPSR) | 80 Degrees |
| Shape | 80° Rhombic |
| Cutting Edge Material | Cermet |
| Series/List # | MP3025 |
| Grade | MP3025 |
