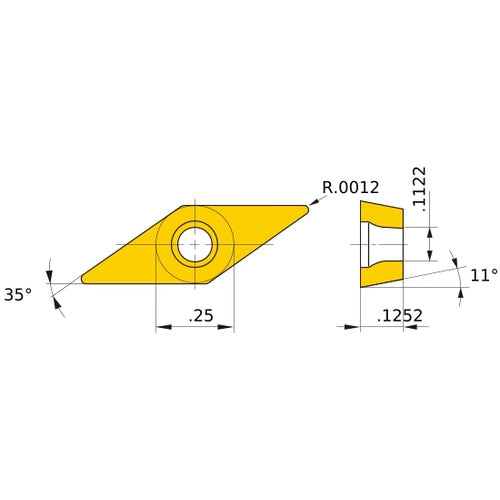

VPET 22 R-SRF VP15TF, 0.03 mm Corner Radius, 3.18 mm Thick, 6.35 mm Inscribed Circle, Turning Indexable Insert
Item #: MB02527064
Brand: Mitsubishi Materials USA
Model #: 527064
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Hard Materials |
| Tool Type | Turning Insert |
| Application | Finish Cutting |
| Fixing Hole Diameter (D1) | 2.85 mm |
| Insert Style | VPET |
| Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.03 mm |
| Cutting Direction (HAND) | Right Hand |
| Insert Size | 22 |
| Chip Breaker Type | R-SRF |
| Insert Thickness (S) | 3.18 mm |
| Quantity | 10 |
| Inscribed Circle Diameter (IC) | 6.35 mm |
| Measurement Type | Metric |
| Insert Included Angle (EPSR) | 35 Degrees |
| Shape | 35° Rhombic |
| Cutting Edge Material | Carbide |
| Series/List # | VP15TF |
| Grade | VP15TF |
| Cutting Edge Effective Length (LE) | 2.9 mm |
