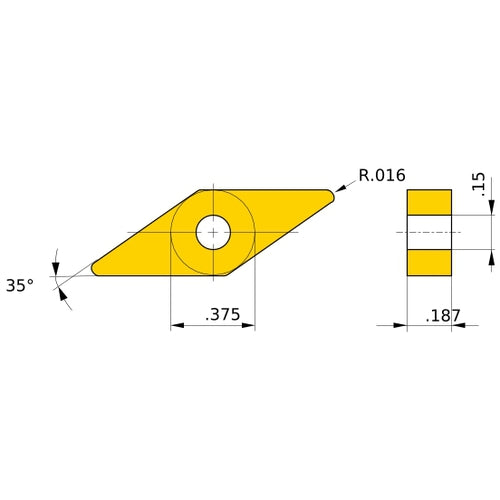

VNGG 331 R NX3035, 0.4 mm Corner Radius, 4.76 mm Thick, 9.525 mm Inscribed Circle, Turning Indexable Insert
Item #: MB02486012
Brand: Mitsubishi Materials USA
Model #: 486012
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Tool Type | Turning Insert |
| Application | Medium Cutting |
| Fixing Hole Diameter (D1) | 3.81 mm |
| Insert Style | VNGG |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.4 mm |
| Chip Breaker Type | R |
| Insert Size | 331 |
| Quantity | 10 |
| Insert Thickness (S) | 4.76 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Shape | 35° Rhombic |
| Insert Included Angle (EPSR) | 35 Degrees |
| Series/List # | NX3035 |
| Cutting Edge Material | Cermet |
| Cutting Edge Effective Length (LE) | 15.6 mm |
| Grade | NX3035 |
