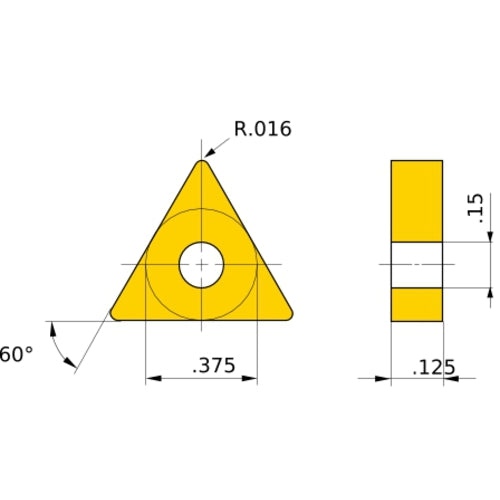

TNGG 321 L NX3035, 1/64″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Item #: MB02438643
Brand: Mitsubishi Materials USA
Model #: 438643
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Grade | NX3035 |
| Application | Medium Cutting |
| Fixing Hole Diameter (D1) | 3.81 mm |
| Insert Style | TNGG |
| Cutting Direction (HAND) | Left Hand |
| Corner Radius (RE) | 0.4 mm |
| Chip Breaker Type | L |
| Insert Size | 321 |
| Measurement Type | Metric |
| Insert Thickness (S) | 3.18 mm |
| Shape | Triangle |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Series/List # | NX3035 |
| Insert Included Angle (EPSR) | 60 Degrees |
| Cutting Edge Effective Length (LE) | 5.4 mm |
| Cutting Edge Material | Cermet |
