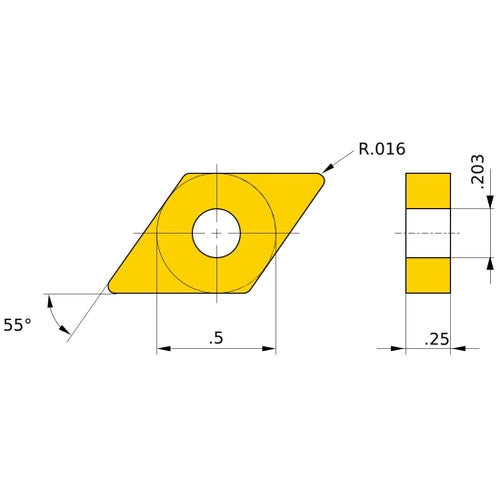

DNMX 441 SW NX3035, 1/64″ Corner Radius, 1/4″ Thick, 1/2″ Inscribed Circle, Turning Indexable Insert
Item #: MB02438070
Brand: Mitsubishi Materials USA
Model #: 438070
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Cutting Edge Material | Cermet |
| Application | Light Cutting |
| Grade | NX3035 |
| Insert Style | DNMX |
| Fixing Hole Diameter (D1) | 5.16 mm |
| Corner Radius (RE) | 0.4 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 441 |
| Chip Breaker Type | SW |
| Insert Thickness (S) | 6.35 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Shape | 55° Rhombic |
| Insert Included Angle (EPSR) | 55 Degrees |
| Series/List # | NX3035 |
