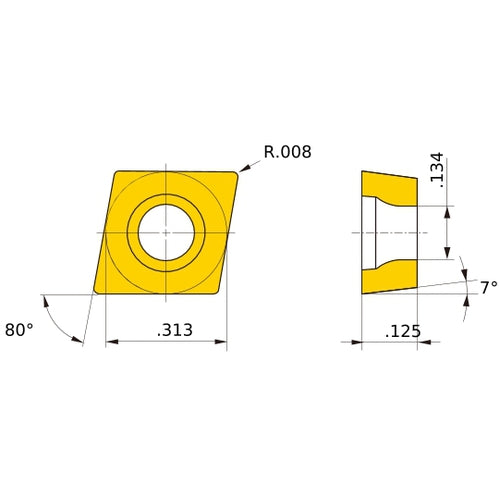

CCMT 2.520.5 standard UE6110, 0.2 Corner Radius, 1/8″ Thick, 5/16″ Inscribed Circle, Turning Indexable Insert
Item #: MB02407265
Brand: Mitsubishi Materials USA
Model #: 407265
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Grade | UE6110 |
| Application | Medium Cutting |
| Fixing Hole Diameter (D1) | 3.4 mm |
| Insert Style | CCMT |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.2 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 2.520.5 |
| Chip Breaker Type | standard |
| Insert Thickness (S) | 3.18 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 7.94 mm |
| Shape | 80° Rhombic |
| Insert Included Angle (EPSR) | 80 Degrees |
| Series/List # | UE6110 |
| Cutting Edge Material | Carbide |
