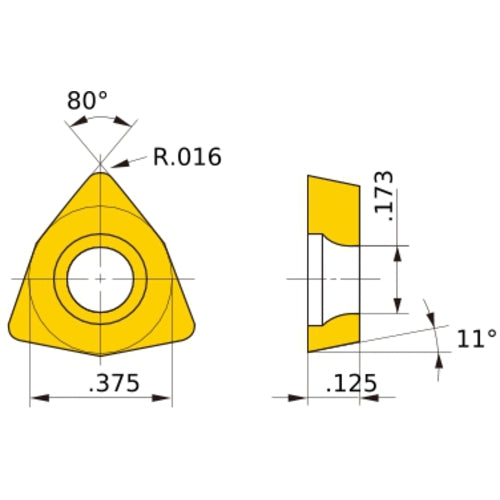

WPGT 321 L- VP15TF, 1/64″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Item #: MB02403926
Brand: Mitsubishi Materials USA
Model #: 403926
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Hard Materials |
| Grade | VP15TF |
| Application | Finish Cutting |
| Fixing Hole Diameter (D1) | 4.4 mm |
| Insert Style | WPGT |
| Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.4 mm |
| Cutting Direction (HAND) | Left Hand |
| Insert Size | 321 |
| Chip Breaker Type | L-FS |
| Insert Thickness (S) | 3.18 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Shape | Trigon |
| Insert Included Angle (EPSR) | 80 Degrees |
| Series/List # | VP15TF |
| Cutting Edge Material | Carbide |
| Cutting Edge Effective Length (LE) | 3.2 mm |
