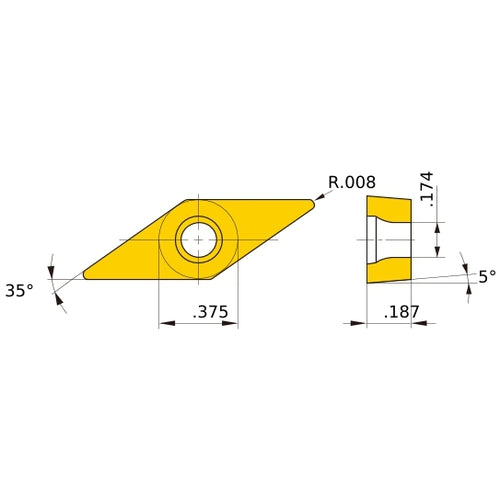

VBGT 330.5 L-F HTi10, 0.2 Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Item #: MB02402510
Brand: Mitsubishi Materials USA
Model #: 402510
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials |
| Grade | HTi10 |
| Application | Finish Cutting |
| Fixing Hole Diameter (D1) | 4.43 mm |
| Insert Style | VBGT |
| Clearance Angle Major (AN) | 5 Degrees |
| Corner Radius (RE) | 0.2 mm |
| Cutting Direction (HAND) | Left Hand |
| Insert Size | 330.5 |
| Chip Breaker Type | L-F |
| Insert Thickness (S) | 4.76 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Shape | 35° Rhombic |
| Insert Included Angle (EPSR) | 35 Degrees |
| Series/List # | HTi10 |
| Cutting Edge Material | Carbide |
| Cutting Edge Effective Length (LE) | 4.5 mm |
