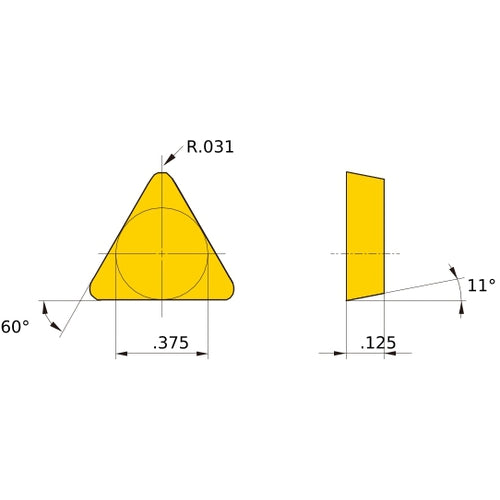

TPGR 322 R NX2525, 1/32″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Item #: MB02401605
Brand: Mitsubishi Materials USA
Model #: 401605
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Grade | NX2525 |
| Application | Finish Cutting |
| Clearance Angle Major (AN) | 11 Degrees |
| Insert Style | TPGR |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.8 mm |
| Chip Breaker Type | R |
| Insert Size | 322 |
| Measurement Type | Metric |
| Insert Thickness (S) | 3.18 mm |
| Shape | Triangle |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Series/List # | NX2525 |
| Insert Included Angle (EPSR) | 60 Degrees |
| Cutting Edge Effective Length (LE) | 5.1 mm |
| Cutting Edge Material | Cermet |
