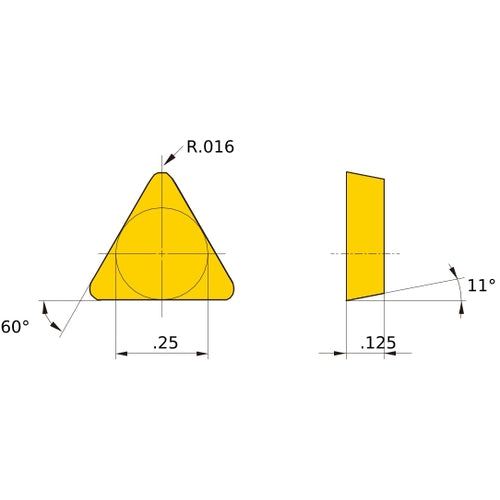

TPGR 221 L HTi10, 1/64″ Corner Radius, 1/8″ Thick, 1/4″ Inscribed Circle, Turning Indexable Insert
Item #: MB02401411
Brand: Mitsubishi Materials USA
Model #: 401411
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials |
| Grade | HTi10 |
| Application | Finish Cutting |
| Clearance Angle Major (AN) | 11 Degrees |
| Insert Style | TPGR |
| Cutting Direction (HAND) | Left Hand |
| Corner Radius (RE) | 0.4 mm |
| Chip Breaker Type | L |
| Insert Size | 221 |
| Measurement Type | Metric |
| Insert Thickness (S) | 3.18 mm |
| Shape | Triangle |
| Inscribed Circle Diameter (IC) | 6.35 mm |
| Series/List # | HTi10 |
| Insert Included Angle (EPSR) | 60 Degrees |
| Cutting Edge Effective Length (LE) | 3 mm |
| Cutting Edge Material | Carbide |
