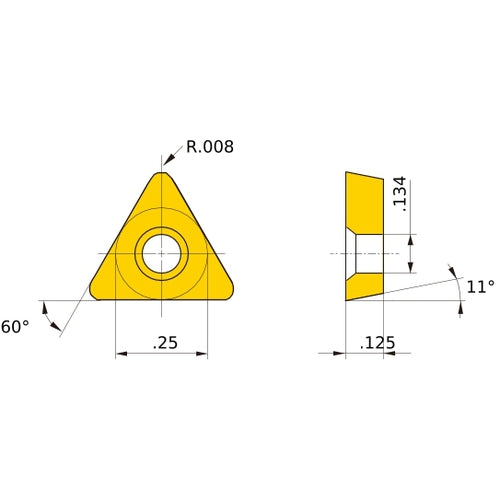

TPGH 220.5 L- AP25N, 0.008″ Corner Radius, 1/8″ Thick, 1/4″ Inscribed Circle, Turning Indexable Insert
Item #: MB02401218
Brand: Mitsubishi Materials USA
Model #: 401218
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Grade | AP25N |
| Application | Finish Cutting |
| Fixing Hole Diameter (D1) | 3.4 mm |
| Insert Style | TPGH |
| Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.2 mm |
| Cutting Direction (HAND) | Left Hand |
| Insert Size | 220.5 |
| Chip Breaker Type | L-FS |
| Insert Thickness (S) | 3.18 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 6.35 mm |
| Shape | Triangle |
| Insert Included Angle (EPSR) | 60 Degrees |
| Series/List # | AP25N |
| Cutting Edge Material | Cermet |
| Cutting Edge Effective Length (LE) | 4.2 mm |
