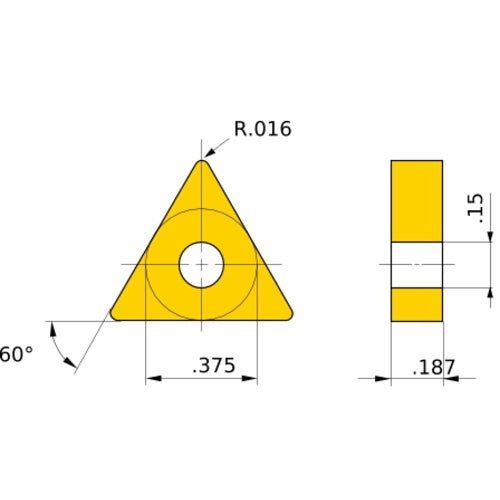

TNMG 331 R-2G NX2525, 1/64″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Item #: MB02400477
Brand: Mitsubishi Materials USA
Model #: 400477
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Cutting Edge Material | Cermet |
| Application | Medium Cutting |
| Grade | NX2525 |
| Insert Style | TNMG |
| Fixing Hole Diameter (D1) | 3.81 mm |
| Corner Radius (RE) | 0.4 mm |
| Cutting Direction (HAND) | Right Hand |
| Insert Size | 331 |
| Chip Breaker Type | R-2G |
| Insert Thickness (S) | 4.76 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Shape | Triangle |
| Insert Included Angle (EPSR) | 60 Degrees |
| Series/List # | NX2525 |
