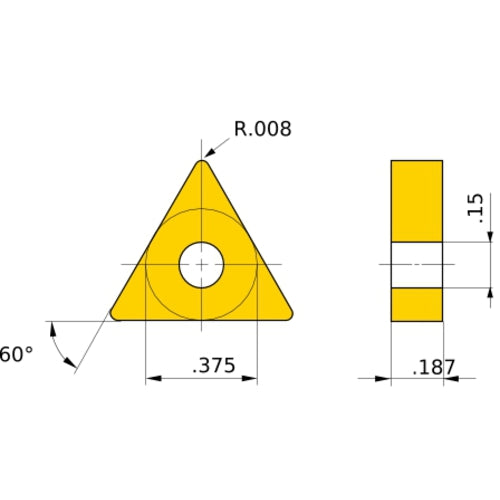

TNGA 330.5 flat_top NX2525, 0.2 Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Item #: MB02399891
Brand: Mitsubishi Materials USA
Model #: 399891
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Grade | NX2525 |
| Insert Style | TNGA |
| Fixing Hole Diameter (D1) | 3.81 mm |
| Corner Radius (RE) | 0.2 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 330.5 |
| Chip Breaker Type | flat_top |
| Insert Thickness (S) | 4.76 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Shape | Triangle |
| Insert Included Angle (EPSR) | 60 Degrees |
| Series/List # | NX2525 |
| Cutting Edge Material | Cermet |
