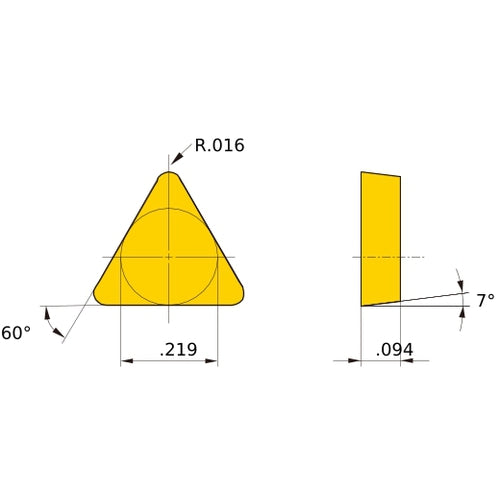

TCG 1.81.51 flat_top HTi10, 1/64″ Corner Radius, 3/32″ Thick, 7/32″ Inscribed Circle, Turning Indexable Insert
Item #: MB02399584
Brand: Mitsubishi Materials USA
Model #: 399584
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials |
| Grade | HTi10 |
| Insert Style | TCG |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.4 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 1.81.51 |
| Chip Breaker Type | flat_top |
| Insert Thickness (S) | 2.38 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 5.56 mm |
| Shape | Triangle |
| Insert Included Angle (EPSR) | 60 Degrees |
| Series/List # | HTi10 |
| Cutting Edge Material | Carbide |
