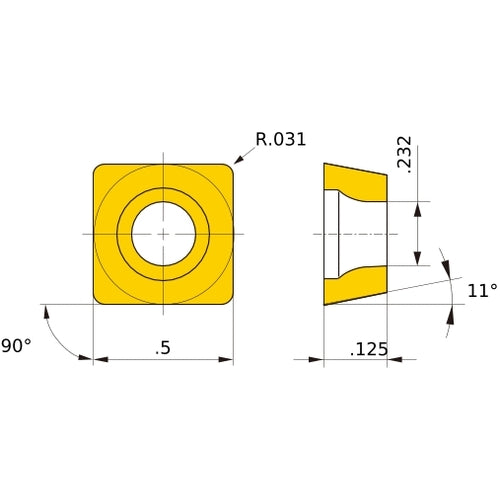

SPGX 422 flat_top HTi10, 1/32″ Corner Radius, 1/8″ Thick, 1/2″ Inscribed Circle, Turning Indexable Insert
Item #: MB02399226
Brand: Mitsubishi Materials USA
Model #: 399226
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials |
| Grade | HTi10 |
| Insert Style | SPGX |
| Fixing Hole Diameter (D1) | 5.9 mm |
| Corner Radius (RE) | 0.8 mm |
| Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 422 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3.18 mm |
| Chip Breaker Type | flat_top |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Measurement Type | Metric |
| Insert Included Angle (EPSR) | 90 Degrees |
| Shape | Square |
| Cutting Edge Material | Carbide |
| Series/List # | HTi10 |
