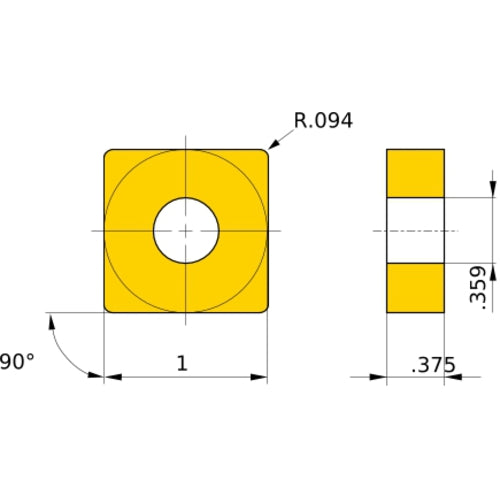

SNMM 866 HV UH6400, 3/32″ Corner Radius, 3/8″ Thick, 25.4 Inscribed Circle, Turning Indexable Insert
Item #: MB02398987
Brand: Mitsubishi Materials USA
Model #: 398987
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Cutting Edge Material | Carbide |
| Application | Heavy Cutting |
| Grade | UH6400 |
| Insert Style | SNMM |
| Fixing Hole Diameter (D1) | 9.12 mm |
| Corner Radius (RE) | 2.4 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 866 |
| Chip Breaker Type | HV |
| Insert Thickness (S) | 9.52 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 25.4 mm |
| Shape | Square |
| Insert Included Angle (EPSR) | 90 Degrees |
| Series/List # | UH6400 |
