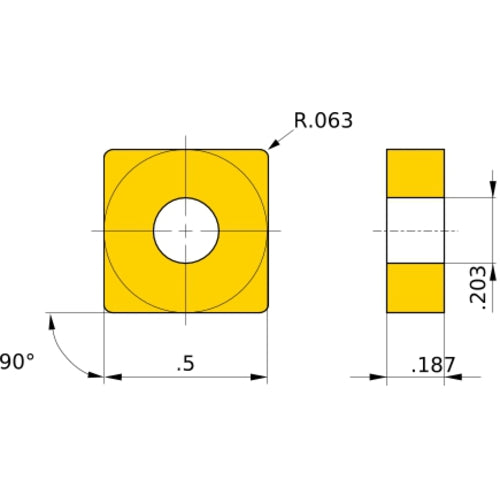

SNMG 434 MS US735, 1/16″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, Turning Indexable Insert
Item #: MB02398063
Brand: Mitsubishi Materials USA
Model #: 398063
| Product Specifications | |
|---|---|
| Applicable Material | Stainless Steel |
| Cutting Edge Material | Carbide |
| Application | Medium Cutting |
| Grade | US735 |
| Insert Style | SNMG |
| Fixing Hole Diameter (D1) | 5.16 mm |
| Corner Radius (RE) | 1.6 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 434 |
| Chip Breaker Type | MS |
| Insert Thickness (S) | 4.76 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Shape | Square |
| Insert Included Angle (EPSR) | 90 Degrees |
| Series/List # | US735 |
