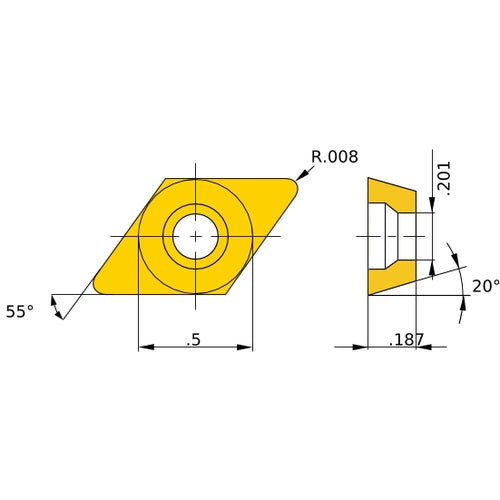

DEGX430.5RF HTI10 INSERT
Item #: MB02392817
Brand: Mitsubishi Materials USA
Model #: 392817
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials |
| Clearance Angle Major (AN) | 20 Degrees |
| Cutting Edge Length (L) | 0.2913″ |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.2 mm |
| Chip Breaker Type | R-F |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Series/List # | HTi10 |
| Insert Thickness (S) | 4.76 mm |
| Hole Diameter | 5.1 mm |
| Insert Included Angle (EPSR) | 55 Degrees |
| Cutting Edge Material | Carbide |
| Grade | HTi10 |
| Tool Type | turning_inserts |
| Shape | 55° Rhombic |
| Measurement Type | Metric |
| Insert Style | DEGX |
