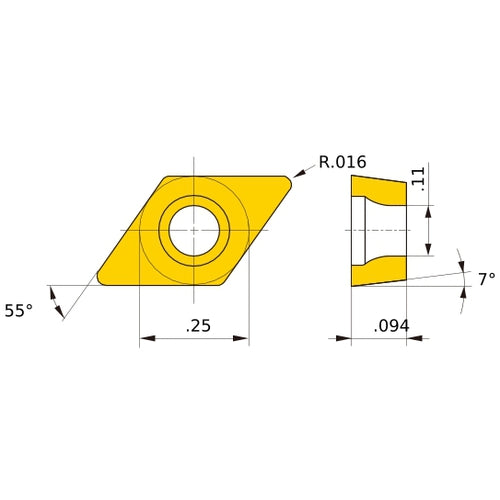

DCGT 21.51 L-F NX2525, 1/64″ Corner Radius, 3/32″ Thick, 1/4″ Inscribed Circle, Turning Indexable Insert
Item #: MB02392420
Brand: Mitsubishi Materials USA
Model #: 392420
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Grade | NX2525 |
| Application | Finish Cutting |
| Fixing Hole Diameter (D1) | 2.8 mm |
| Insert Style | DCGT |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.4 mm |
| Cutting Direction (HAND) | Left Hand |
| Insert Size | 21.51 |
| Chip Breaker Type | L-F |
| Insert Thickness (S) | 2.38 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 6.35 mm |
| Shape | 55° Rhombic |
| Insert Included Angle (EPSR) | 55 Degrees |
| Series/List # | NX2525 |
| Cutting Edge Material | Cermet |
| Cutting Edge Effective Length (LE) | 3.2 mm |
