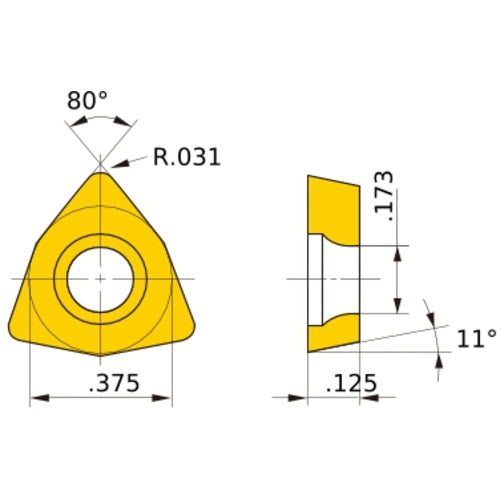

WPMT 322 MV VP15TF, 0.8 mm Corner Radius, 3.18 mm Thick, 9.525 mm Inscribed Circle, Turning Indexable Insert
Item #: MB02315627
Brand: Mitsubishi Materials USA
Model #: 315627
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Hard Materials |
| Tool Type | Turning Insert |
| Application | Medium Cutting |
| Fixing Hole Diameter (D1) | 4.4 mm |
| Insert Style | WPMT |
| Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.8 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 322 |
| Chip Breaker Type | MV |
| Insert Thickness (S) | 3.18 mm |
| Quantity | 10 |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Measurement Type | Metric |
| Insert Included Angle (EPSR) | 80 Degrees |
| Shape | Trigon |
| Cutting Edge Material | Carbide |
| Series/List # | VP15TF |
| Grade | VP15TF |
