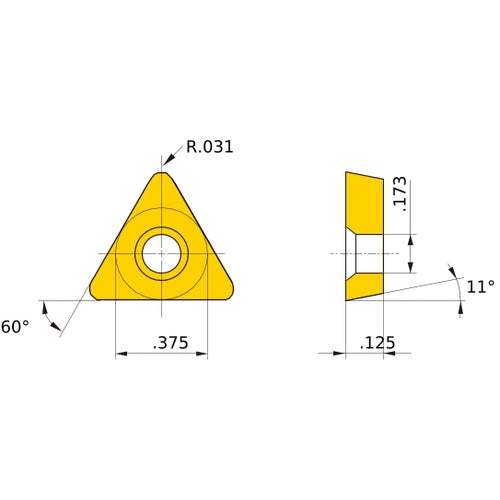

TPMH 322 SV VP45N, 0.8 mm Corner Radius, 3.18 mm Thick, 9.525 mm Inscribed Circle, Turning Indexable Insert
Item #: MB02314641
Brand: Mitsubishi Materials USA
Model #: 314641
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Tool Type | Turning Insert |
| Application | Light Cutting |
| Fixing Hole Diameter (D1) | 4.4 mm |
| Insert Style | TPMH |
| Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.8 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 322 |
| Chip Breaker Type | SV |
| Insert Thickness (S) | 3.18 mm |
| Quantity | 10 |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Measurement Type | Metric |
| Insert Included Angle (EPSR) | 60 Degrees |
| Shape | Triangle |
| Cutting Edge Material | Cermet |
| Series/List # | VP45N |
| Grade | VP45N |
