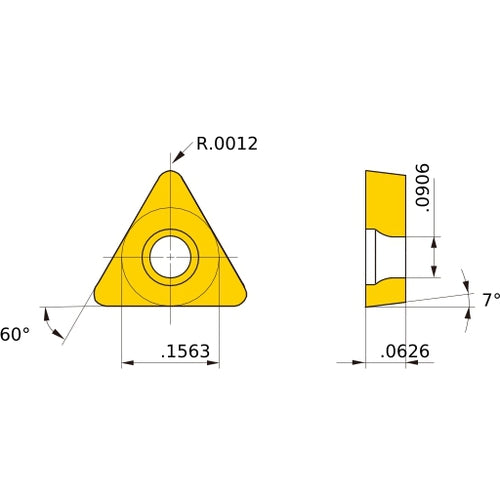

TCGT 1.21 L-F NX2525, 0.03 Corner Radius, 1/16″ Thick, 3.97 Inscribed Circle, Turning Indexable Insert
Item #: MB02294678
Brand: Mitsubishi Materials USA
Model #: 294678
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Grade | NX2525 |
| Application | Finish Cutting |
| Fixing Hole Diameter (D1) | 2.3 mm |
| Insert Style | TCGT |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.03 mm |
| Cutting Direction (HAND) | Left Hand |
| Insert Size | 1.21 |
| Chip Breaker Type | L-F |
| Insert Thickness (S) | 1.59 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 3.97 mm |
| Shape | Triangle |
| Insert Included Angle (EPSR) | 60 Degrees |
| Series/List # | NX2525 |
| Cutting Edge Material | Cermet |
| Cutting Edge Effective Length (LE) | 2.9 mm |
