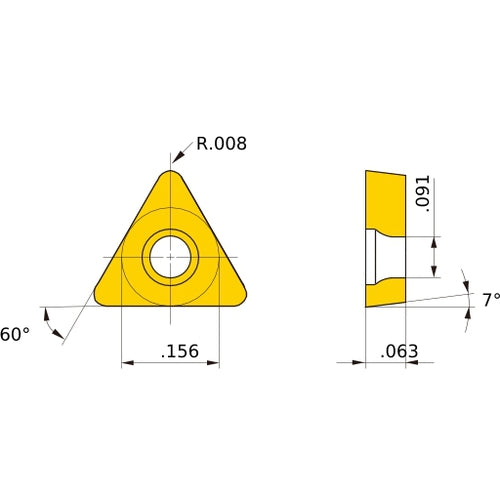

TCGT 1.210.5 L-F HTi10, 0.2 mm Corner Radius, 1.59 mm Thick, 3.97 mm Inscribed Circle, Turning Indexable Insert
Item #: MB02294627
Brand: Mitsubishi Materials USA
Model #: 294627
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials |
| Tool Type | Turning Insert |
| Application | Finish Cutting |
| Fixing Hole Diameter (D1) | 2.3 mm |
| Insert Style | TCGT |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.2 mm |
| Cutting Direction (HAND) | Left Hand |
| Insert Size | 1.210.5 |
| Chip Breaker Type | L-F |
| Insert Thickness (S) | 1.59 mm |
| Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3.97 mm |
| Measurement Type | Metric |
| Insert Included Angle (EPSR) | 60 Degrees |
| Shape | Triangle |
| Cutting Edge Material | Carbide |
| Series/List # | HTi10 |
| Grade | HTi10 |
| Cutting Edge Effective Length (LE) | 3 mm |
