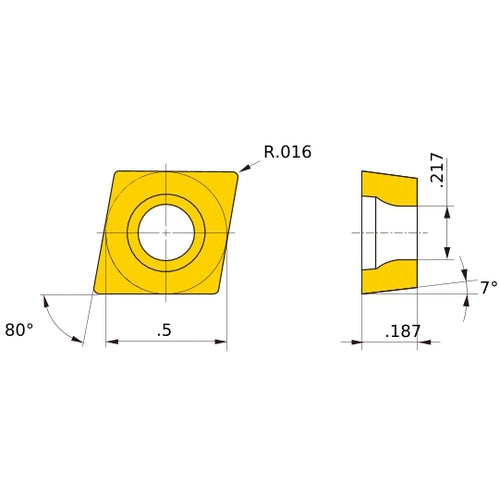

CCMW 431 flat_top UC5105, 0.4 mm Corner Radius, 4.76 mm Thick, 12.7 mm Inscribed Circle, Turning Indexable Insert
Item #: MB02292701
Brand: Mitsubishi Materials USA
Model #: 292701
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron |
| Tool Type | Turning Insert |
| Insert Style | CCMW |
| Fixing Hole Diameter (D1) | 5.5 mm |
| Corner Radius (RE) | 0.4 mm |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 431 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 4.76 mm |
| Chip Breaker Type | flat_top |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees |
| Measurement Type | Metric |
| Cutting Edge Material | Carbide |
| Shape | 80° Rhombic |
| Grade | UC5105 |
| Series/List # | UC5105 |
