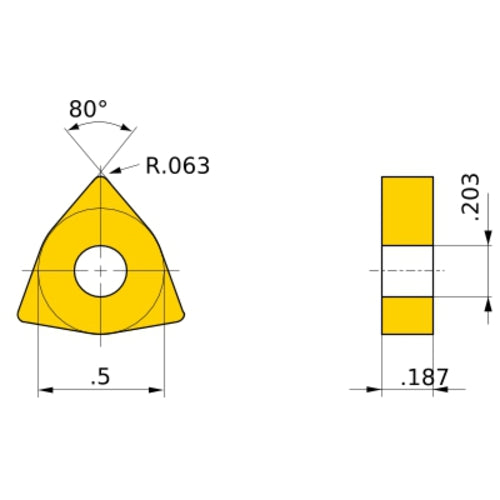

WNMA 434 flat_top UC5115, 1/16″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, Turning Indexable Insert
Item #: MB02291371
Brand: Mitsubishi Materials USA
Model #: 291371
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron |
| Grade | UC5115 |
| Insert Style | WNMA |
| Fixing Hole Diameter (D1) | 5.16 mm |
| Corner Radius (RE) | 1.6 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 434 |
| Chip Breaker Type | flat_top |
| Insert Thickness (S) | 4.76 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Shape | Trigon |
| Insert Included Angle (EPSR) | 80 Degrees |
| Series/List # | UC5115 |
| Cutting Edge Material | Carbide |
